Winches
MES has the winches to lift or pull whatever the contractor needs on a project. We have small electrical winches for rent or sale, all the way up mechanical winches with bare drum pulls up to 99,000 lbs! Chances are if a contractor has heard of it, we have it within our organization. We may even have a few that they haven’t heard of. Call today and talk with your Territory Manager and we will get you started on a lifting/pulling solution that can’t be matched!

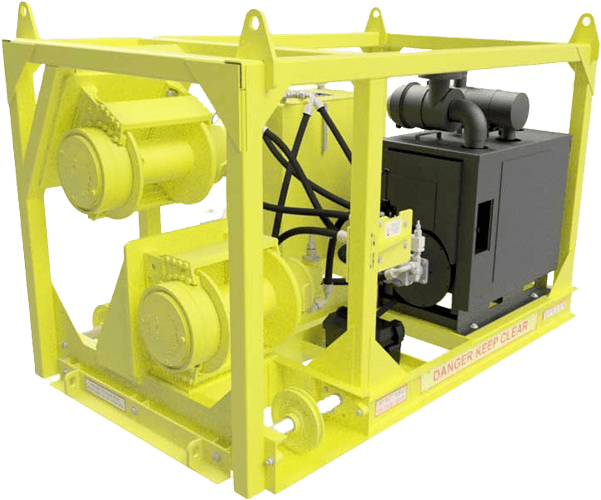

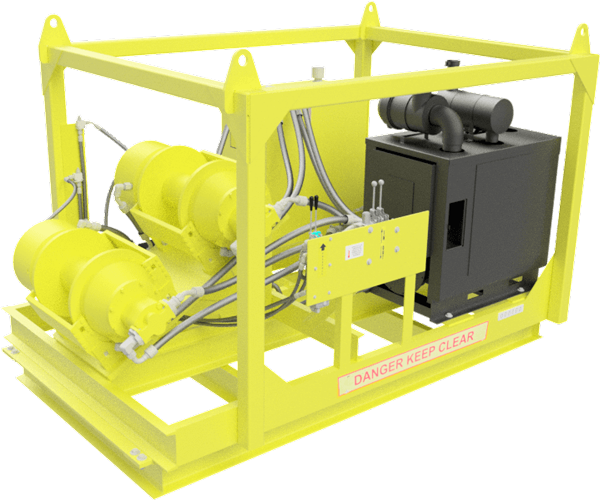

Poseidon® P100 Split Hydraulic Double Drum Winch
Poseidon’s P100 Split Hydraulic Double Drum Winch is a robust unit that will lift 24” diameter spuds in excess of 80’ long dependent on the conditions. Sporting drums that feed cable out of opposites ends of the winch frame, its design allows for fewer situations where a contractor “must” re-direct their steel cable with snatch blocks.
- Features Pullmaster H18 rapid-reverse hydraulic winch units.
- 3/4″ cable can be purchased from MES. May ship separately, will quote spooling on to winch when possible.
- Each drum holds up to 500’ of ¾” steel cable
- Cat 3.4B 120 HP Tier 4
- 120 gallon reservoir with sight gauge
- Uses Chevron Clarity Hydraulic Oil
- 18,000 lbs bare drum line pull @ 104 ft/min
- Key start with 2 section manual control valve
Specs Sheet (PDF)

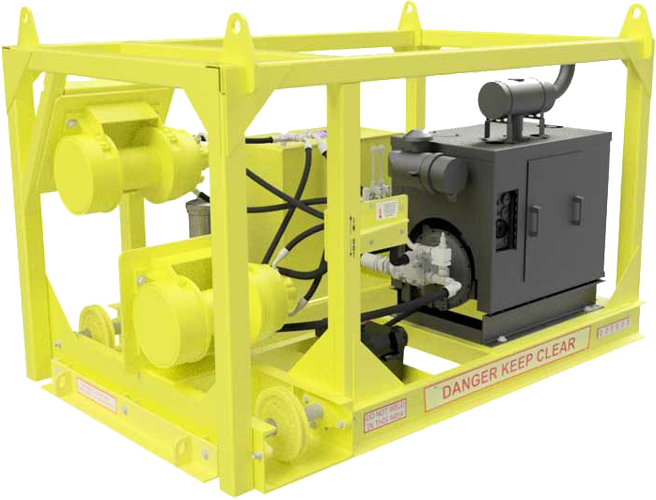

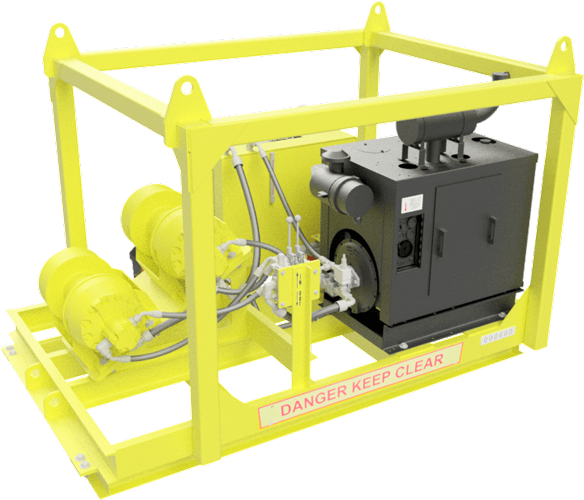

Poseidon® P65 Split Hydraulic Double Drum Winch
This unit is the smaller version of the Poseidon P100 Split Hydraulic Double Drum Winch. This unit can effectively handle most 18” diameter spuds. Your MES Territory Manager can assist in determining what winch unit best suits you.
- Features Pullmaster H12 rapid-reverse hydraulic winch units.
- 5/8” cable can be purchased from MES. May ship separately, will quote spooling on to winch when possible.
- Each drum holds up to 222’ of 5/8” steel cable
- Cummins 74 HP Tier 4
- 85 gallon reservoir with sight gauge
- Uses Chevron Clarity Hydraulic Oil
- 12,000 lbs bare drum line pull @ 104 ft/min
- Key start with 2 section manual control valve
Specs Sheet (PDF)
Poseidon Pocket Mounted Winch System
Poseidon’s pocket mounted winches are integrated right into the spud pocket eliminating the need for steel cable to run across the deck! Powered by the Poseidon Hydraulic Power Units and fed by an umbilical hose, the Pocket Mounted Winch System operates 2 winches from one set of controls located on the power pack. Optional HPU configurations are available that can operate up to 4 winches from a single set of controls.
- Features Pullmaster H18 rapid-reverse hydraulic winch units.
- 3/4” cable can be purchased from MES. May ship separately, will quote spooling on to winch when possible.
- Drum holds up to 170’ of 3/4″ steel cable
- CAT 3.4B 120 HP Tier 4
- 110 gallon reservoir with sight gauge
- Uses Environmentally Friendly Oil
- 18,000 lbs bare drum line pull @ 122 ft/min
- 11,288 lbs full drum line pull @195 ft/min
- Key start with fully electronic engine controls
Additional Winch Offerings
Rasmussen, an MES Company, stocks a wide range of large and specialized winch systems designed to meet the demands of heavy-duty marine and industrial applications. These unique systems are selected for their durability, performance, and versatility, ensuring reliable operation in even the most challenging environments. Whether for mooring, towing, or lifting, Rasmussen offers tailored winch solutions ready for immediate deployment.
