For Rent or Sale
10FT Tall Barges
Poseidon’s P-10 was born when a need was recognized while viewing cranes during a trade show. Cranes continually grow larger but often contractors have limited space to float those cranes. The barges had to adapt to accommodate these massive cranes while shrinking their footprint! Poseidon’s P-10 does both.
Poseidon P10 Series
Poseidon’s P10 is the largest sectional barge that can travel over US Highways via semi-truck. It comes in 2 lengths: 44’ and 22’.

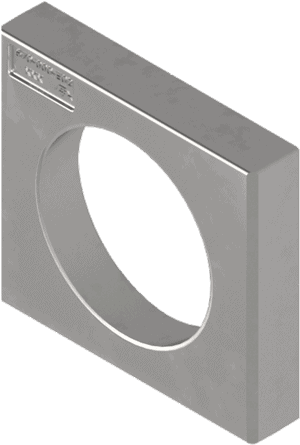

The Poseidon P10 series utilizes a Male Lug and Female Connection with lock bar, similar to other Poseidon sectional barges.
P10 Barge Weight
- 44’ x 11’ x 10’ Barge – 46,200 lbs.
- 22′ x 11’ x 10’ Barge – 25,500 lbs.
- 15’ x 11’ x 10’ Rake – 16,100 lbs.
P10 Barge Capacity
- 44′ x 11′ x 10′ Barge – 100,800 lbs @ 5’ draft
- 22′ x 11’ x 10’ Barge – 48,000 lbs @ 5’ draft
Spuds
- 24” x ¾” Wall Steel Spuds in lengths from 20’ to 80’.
- External Mount Spud Pockets that can be placed anywhere there is a free connection.
Features & Specifications
- Patented Heavy Duty Roll Form, HSLA Steel Deck Construction with 25,000 PSF Concentrated Load Capacity
- Standard 18”dia Deck Hatches with a ladder on the interior of the barge.
- Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
- Interior Coated with Bio-Float Rust Inhibitor
- Zinc Anodes are welded to the exterior for additional corrosion protection.
** Overall dimensions may be rounded for reference only. Exact shipping dimensions can be requested by contacting your Poseidon Territory Manager.
Specs Sheet (PDF)

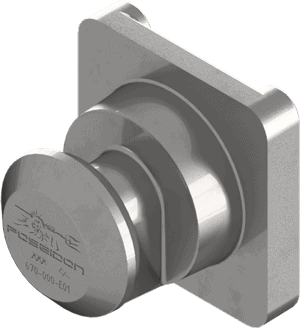

P10 Barge Connector - Male
