For Rent or Sale
5FT Tall Barges
The 5FT Tall Barge is a staple in the Poseidon Sectional Barge fleet. Poseidon manufactures 3 different connection styles to accommodate compatibility with most market offerings a customer may own and simply wish to supplement with a rental.

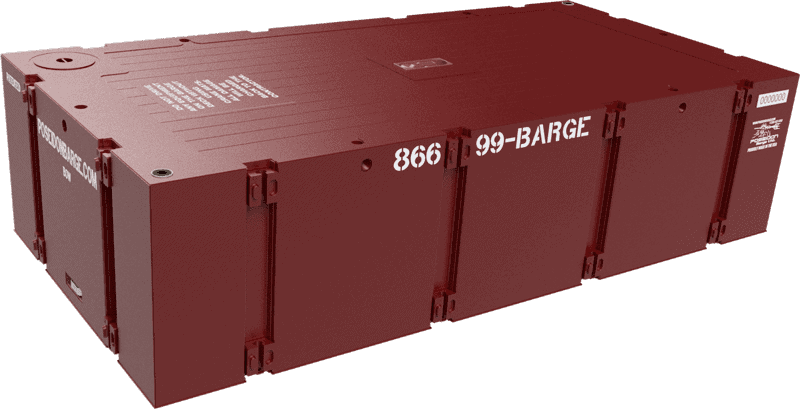

Poseidon P1 Series
This sectional barge has cast connectors on 5’ centers down each side and on the end of the section. Each casting features a male nub and a female indentation. When the next barge or accessory is mated to it, the castings fit together. Then a 5’ “Dogbone” Connector Pin is installed to secure the sections to one another.
A unique feature of the P1 Series barges are that they are completely symmetrical in casting placement. There is no “wrong direction” when setting them into the water for a deck assembly. Castings will line up in any direction.
The P1 series comes in 20’ and 40’ sections. Rakes are available. Spuds, pockets and a variety of other accessories are also available.
P1 Series Weight
- P1 10’ x 5’ x 40’ Barge – 23,300 lbs.
- P1 10’ x 5’ x 20’ Barge – 12,800 lbs.
- P1 10’ x 5’ x 10’ Rake – 6,500 lbs.
P1 Series Capacity
- P1 10’ x 5’ x 40’ Barge – 39,600 lbs @ 2’6” draft
- P1 10’ x 5’ x 20’ Barge – 18,800 lbs @ 2’6” draft
Spuds
- 18” dia x ½” Wall Steel Spuds in lengths from 20’ to 80’
Features
- ¼” Steel Plate Deck Construction with 25,000 PSF Concentrated Load Capacity
- Standard 18”dia Deck Hatches installed
- Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
- Interior Coated with Bio-Float Rust Inhibitor
- Zinc Anodes are welded to the exterior for additional corrosion protection.
The P1 SERIES 5FT Barge is light enough to ship 2 pcs of 10’x5’x40’ sections per overwidth aluminum stepdeck trailer! (That’s double what the competition can ship per truck saving the contractor freight costs)
** Overall dimensions may be rounded for reference only. Exact shipping dimensions can be requested by contacting your Poseidon Territory Manager.
Specs Sheet (PDF)
P1 Series Connector
P1 Connection Pin
Poseidon P2 Series
This sectional barge is the 5’ version of the 7’ P2 Series barge. It utilizes the familiar Male Lug and Female Connection with lock bars that are compatible with other 5’ sectionals available in the marketplace.
The P2 series comes in 20’ and 40’ sections. Rakes and ramps are available. Spuds, pockets and a variety of other accessories are also available.
P2 Series Weight
- P2 10’ x 5’ x 40’ Barge – 23,400 lbs.
- P2 10’ x 5’ x 20’ Barge – 12,900 lbs.
- P2 10’ x 5’ x 10’ Rake – 6,500 lbs.
- P2 10’ x 20’ x 5’ Ramp – 10,700 lbs.
P2 Series Capacity
- P2 10’ x 5’ x 40’ Barge – 39,000 lbs @ 2’6” draft
- P2 10’ x 5’ x 20’ Barge – 18,200 lbs @ 2’6” draft
Spuds
- 18” dia x ½” Wall Steel Spuds in lengths from 20’ to 80’.
- 20” dia x ½” Wall Steel Spuds in lengths from 20’ to 80’.
Features
- ¼” Steel Plate Deck Construction with 25,000 PSF Concentrated Load Capacity
- Standard 18”dia Deck Hatches installed
- Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
- Interior Coated with Bio-Float Rust Inhibitor
- Zinc Anodes are welded to the exterior for additional corrosion protection.
The P2 SERIES 5FT Barge is light enough to ship 2 pcs of 10’x5’x40’ sections per overwidth aluminum stepdeck trailer! (That’s double what the competition can ship per truck saving the contractor freight costs)
** Overall dimensions may be rounded for reference only. Exact shipping dimensions can be requested by contacting your Poseidon Territory Manager.
Specs Sheet (PDF)
P2 Connector - Male
P2 Connector - Female
Poseidon P3 Series
The Poseidon P3 barge utilizes a rail connection system with a series of 5’ “nail pins” connecting sections together or securing accessories. This sectional barge is compatible with other 5’ sectionals available in the marketplace.
The P3 series comes in 20’ and 40’ sections. Spuds, pockets are also available.
P3 Series Weight
- P3 10’ x 5’ x 40’ Barge – 27,800 lbs.
- P3 10’ x 5’ x 20’ Barge – 16,400 lbs.
P3 Series Capacity
- P3 10’ x 5’ x 40’ Barge – 36,000 lbs @ 2’6” draft
- P3 10’ x 5’ x 20’ Barge – 18,200 lbs @ 2’6” draft
Spuds
- 18” dia x ½” Wall Steel Spuds in lengths from 20’ to 80’
- External Mount Spud Pockets that can be placed anywhere there is a free set of connections.
Features
- ¼” Steel Plate Deck Construction with 25,000 PSF Concentrated Load Capacity
- Standard 18”dia Deck Hatches installed
- Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
- Interior Coated with Bio-Float Rust Inhibitor
- Zinc Anodes are welded to the exterior for additional corrosion protection.
** Overall dimensions may be rounded for reference only. Exact shipping dimensions can be requested by contacting your Poseidon Territory Manager.
Specs Sheet (PDF)
