For Rent or Sale

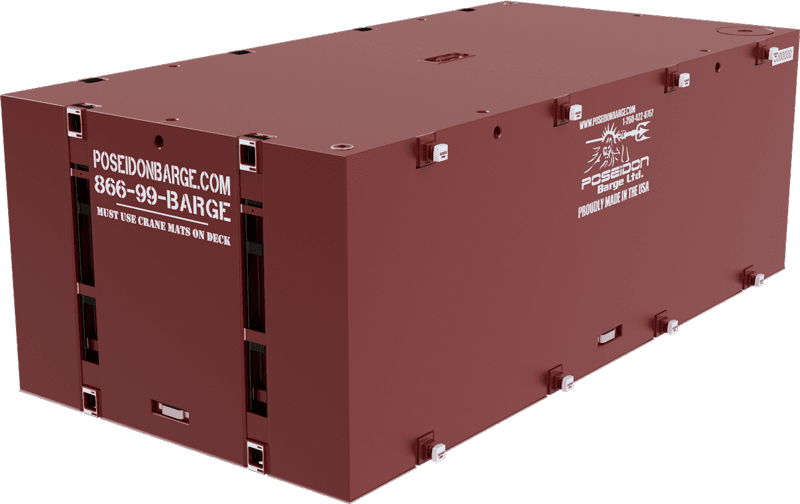

7FT Tall Barges
The robust Poseidon 7’ Sectional Barges come in 20’ and 40’ lengths allowing for unique configurations based on a contractors needs. They are used for dredge platforms, drill rig decks, large crane barges or heavy material/equipment transportation decks.
Poseidon P2 Series

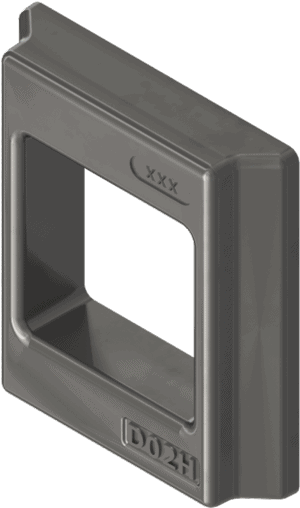

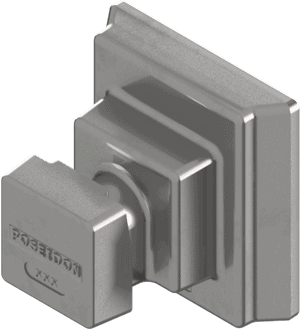

The Poseidon 7’ barges utilize a Male Lug and Female Connection with lock bar that are compatible with other 7’ sectionals available in the marketplace.
P2 Series Weight
- 10’ x 7’ x 40’ Barge – 33,900 lbs.
- 10’ x 7’ x 20’ Barge – 18,500 lbs.
- 10’ x 7’ x 10’ Rake – 8,750 lbs.
- 10’ x 7’ x 20’ Ramp – 13,000 lbs.
P2 Series Capacity
- 10’ x 7’ x 40’ Barge – 66,000 lbs @ 4’ draft
- 10’ x 7’ x 20’ Barge – 30,800 lbs @ 4’ draft
Spuds
- 24” x ½ ” Wall Steel Spuds in lengths from 20’ to 80’.

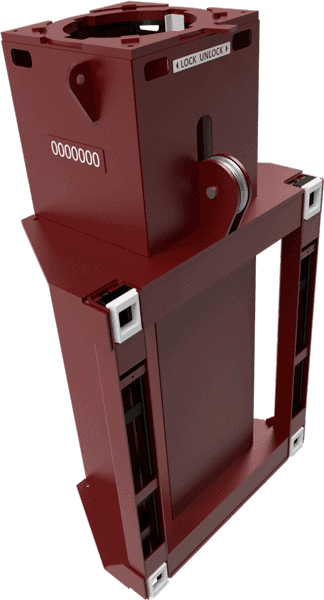

- External Mount Spud Pockets that can be placed anywhere there is a free set of connections.
Features & Specifications
- ¼” Steel Plate Deck Construction with 25,000 PSF Concentrated Load Capacity
- Standard 18”dia Deck Hatches
- Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
- Interior Coated with Bio-Float Rust Inhibitor
- Zinc Anodes are welded to the exterior for additional corrosion protection.
** Overall dimensions may be rounded for reference only. Exact shipping dimensions can be requested by contacting your Poseidon Territory Manager.
Specs Sheet (PDF)
